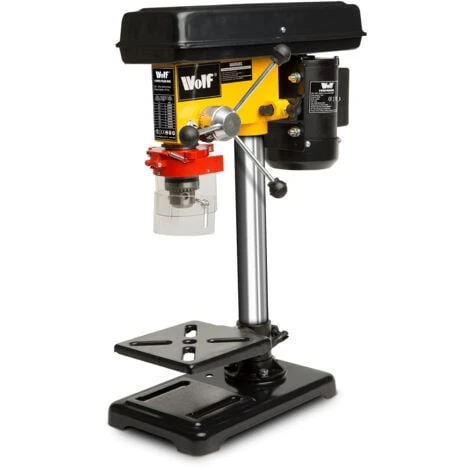

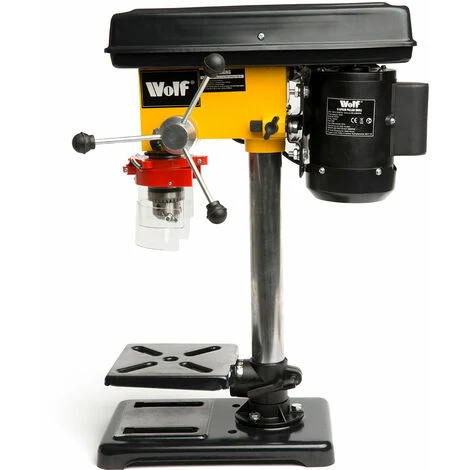

Wolf Engineer’s 9 Speed Pillar Drill With 2.5″ Vice

Greater capacity and more speeds than our 5 speed gives every keen DIY person, maintenance dept., or workshop more opportunities to carryout larger jobs.

Built to last, the Wolf Engineer’s 9 speed Bench Pillar drill ,has the headstock manufactured in high quality cast iron, the base and column are of accurately machined cast steel and may be secured permanently to most types of workbench or stand to provide a reliable, accurate and easy to control eye level pillar drill. The 16mm keyed chuck is held in place by a JT hobby style taper drive shaft similar to the shafts used on industrial style pillar drills fitted with morse tapers. The vertical operation of the chuck is controlled by the three-spindle side handle. Safety dictates that a transparent chuck guard is fitted and an adjustable depth gauge comes as standard.

Power to the chuck is through the twin 9 speed taper pulley arrangement and power to this is from a 500w capacitor start induction run 230v electric motor. Changing speed is easy by releasing the motor tensioning bolt which slackens the belt on the drive pulley and moving the drive belt up or down the corresponding grooves in the pulleys. Drill speeds and corresponding pulley arrangements are shown on a chart fixed to the headstock. The top cover encloses the drive assembly and for safety a micro-switch cuts out the motor when the cover is opened. The industrial style no- volt release stop/start switch prevents the motor from starting up in the event of power failure protecting the operator.

The table can be tilted left or right to any degree as shown on the scale and a handle type bolt allows the table to be moved through 360 degrees around the column.

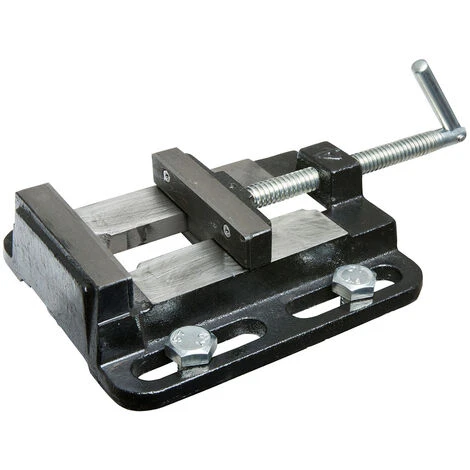

Includes a 2.5″ all steel machine vice which enables work pieces to be held firmly in position whilst being drilled.

2 Years manufacturer’s warranty from Wolf for your peace of mind!

Technical Specification:
– Max. Drilling Capacity: 16 mm
– Chuck capacity: 3 – 16 mm dia.
– Motor 4 pole TEFV induction motor
– Motor:  500 watt, 230 v
– 9 Adjustable speed settings: 400, 620, 630, 800, 810, 960, 1600, 1950 and 2500 RPM
– Max Drilling Depth: 50 mm
– Fitted Depth Stop Control
– Throat depth: 115 mm
– Table Swing: 230mm
– Table Dims: 158 x 160 mm
– Table: Fully height adjustable
– Table: Tilts left and right 0-45 degrees
– Distance Spindle to base: 360 mm
– Distance Spindle to table: 275 mm
– Column dia: 46 mm
– Base Dims: Working dims: 150 x 130 mm; Overall: 185 x 300 mm
– Overall Height:  610 mm
– Weight: 18 Kg
