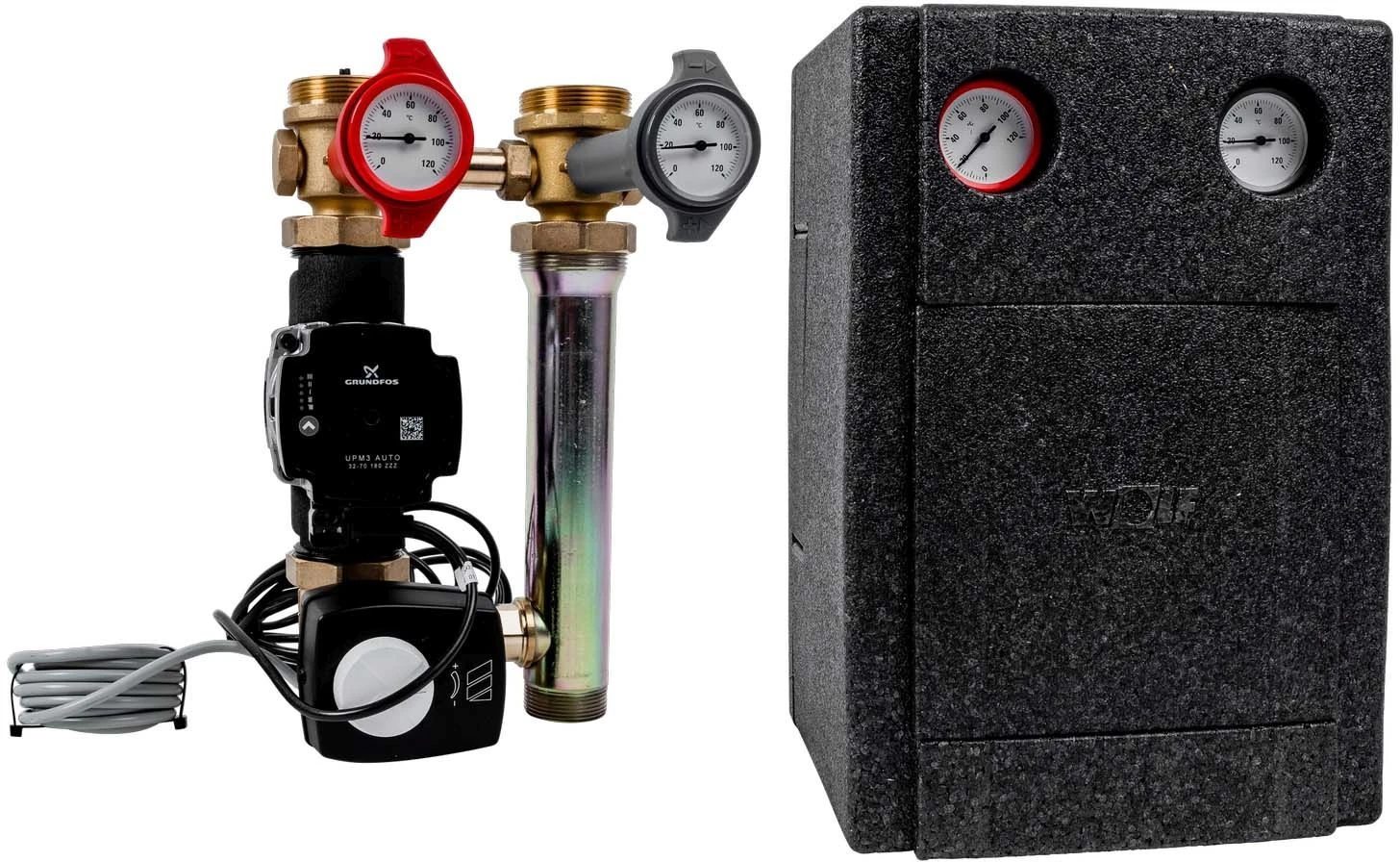

Wolf piping group mixer circuit 2072140
- Flow rate control depending on the required heating water flow rate
- consisting of: high-efficiency pump
- self-regulating
- mounted mixer motor
- both wired ready to plug in with a 4 m cable
- 3-way brass mixer DN 25 kvs=10
- DN 32 kvs=18
- drip-tight at zero position
- adjustable bypass
- simple exchange of flow from left to right using a continuous mixer spindle
- thermometer integrated in both multifunction shut-off fittings at the top
- Ball valves red and blue (under the thermal insulation shell)
- Gravity brake can be set up by 45° position of the thermal handle on the front end
- without overflow valve
- Connections below flat sealing 1 1/2″ above detachable transition screw connection to IT 1″ (DN 25) or IT 1 1/4″ (DN 32)
- Design thermal insulation shells made of EPP
- short overall height (355 mm)
- completely tightly screwed
- hydraulically and electrically tested
| depth | 257 mm |
|---|---|
| height | 370 mm |
| product class | piping set |
| performance 6 | 370 |
| Content packaging unit | 257kg |
