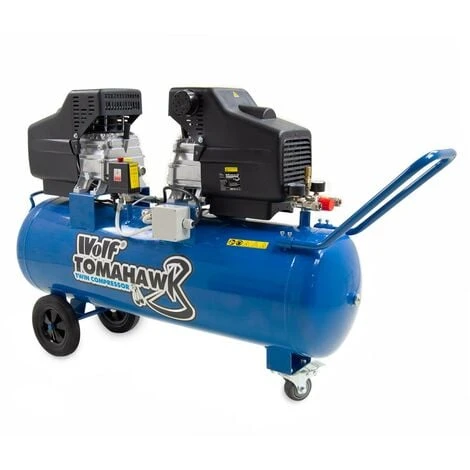

Wolf Tomahawk 100L Air Compressor 19.2 CFM 2 X 2.5HP

This is a very special air compressor fitted with 2 x 230v Single phase air compressor pump and motor units.

Fitted with 2 x single phase Air Compressor Pump and Motor units for those who need a large volume of compressed air but who don’t have access to a 3 phase power supply.

The pump and motor units are individually controlled through their own pressure switch control system and may be operated individually when only 9.6CFM displacement is required or for larger air flow requirements, simultaneously giving a massive 19.2CFM.

Specification:
//Air Displacement: 19.2CFM
//Power: 2 x 2.5HP, 230v Single Phase = 5HP (3.6Kw = 15.7amps @ 230v)
//Air Receiver: 100 litre Portable
//Maximum Working Pressure: 116psi, 8BAR.
//Dimension LxWxH (mm): 1306 x 380 x 820 (with handle)
//Dimension LxWxH (mm): 1030 x 380 x 820 (without handle)

Electricity Supply Requirement:  Minimum 16amp 230v Single Phase

PLEASE NOTE THAT THIS MACHINE MUST NOT BE OPERATED FROM A 13amp PLUG or POWER SUPPLY – serious damage to the machine and or power supply WILL result. The machine MUST NOT be operated from an extension cable to avoid voltage drop and serious damage to the electric motors.
