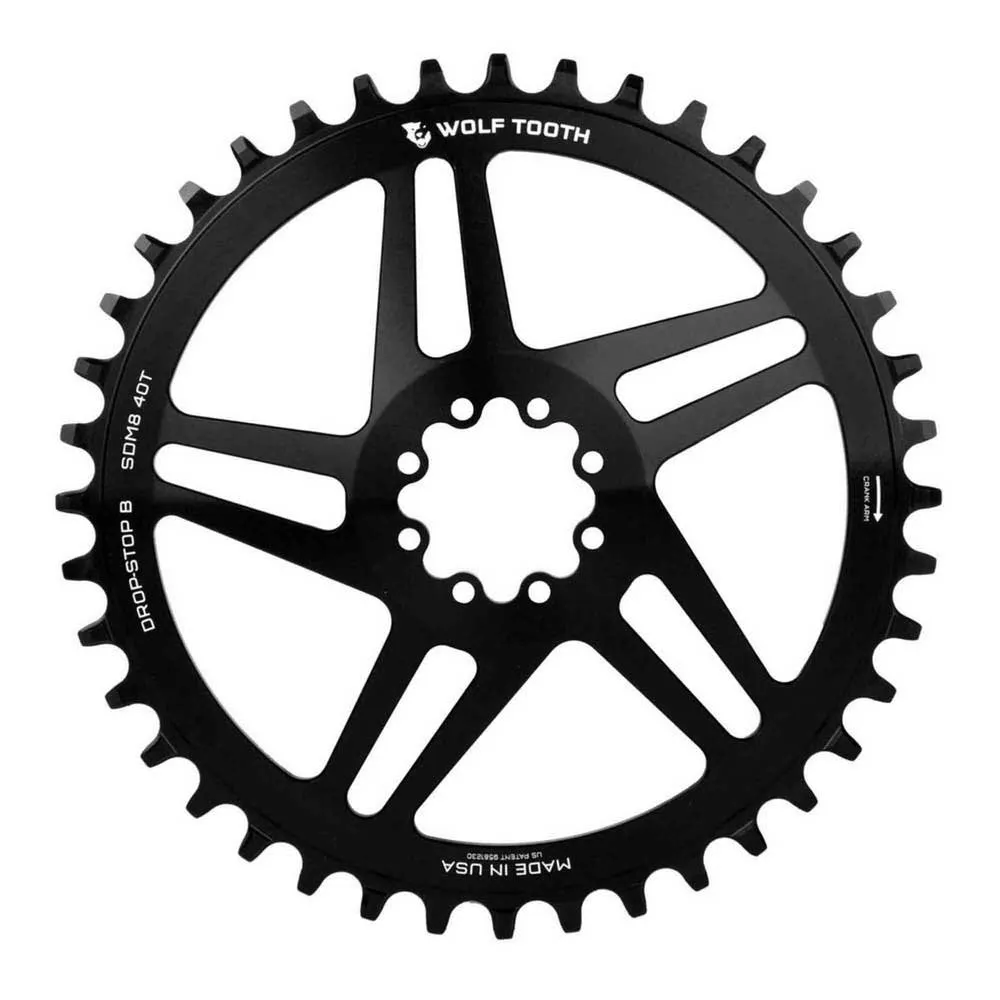

Wolf-tooth 8B Sram AXS Direct Mount Chainring

Direct mount chainrings for SRAM cranks with 8-bolt mounting replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet.

Compatibility:
– These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8-bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.
– All SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. These cranksets use either 107 BCD or 94 BCD; any of those cranksets with a removable spider use the 8-bolt mount.
– Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
– 6mm offset
– Chainline 45mm
– Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop, Campagnolo, KMC, Connex or – Wippermann chains

– Recommend the use of a clutch-style rear derailleur for the best chain security
– Use the included custom T20 bolts. Torque 4Nm with T20 tool

Specifications:

– Weights: 38T-89g
– Material: 7075-T6 aluminum
– Included: set of eight custom T20 stainless steel bolts
