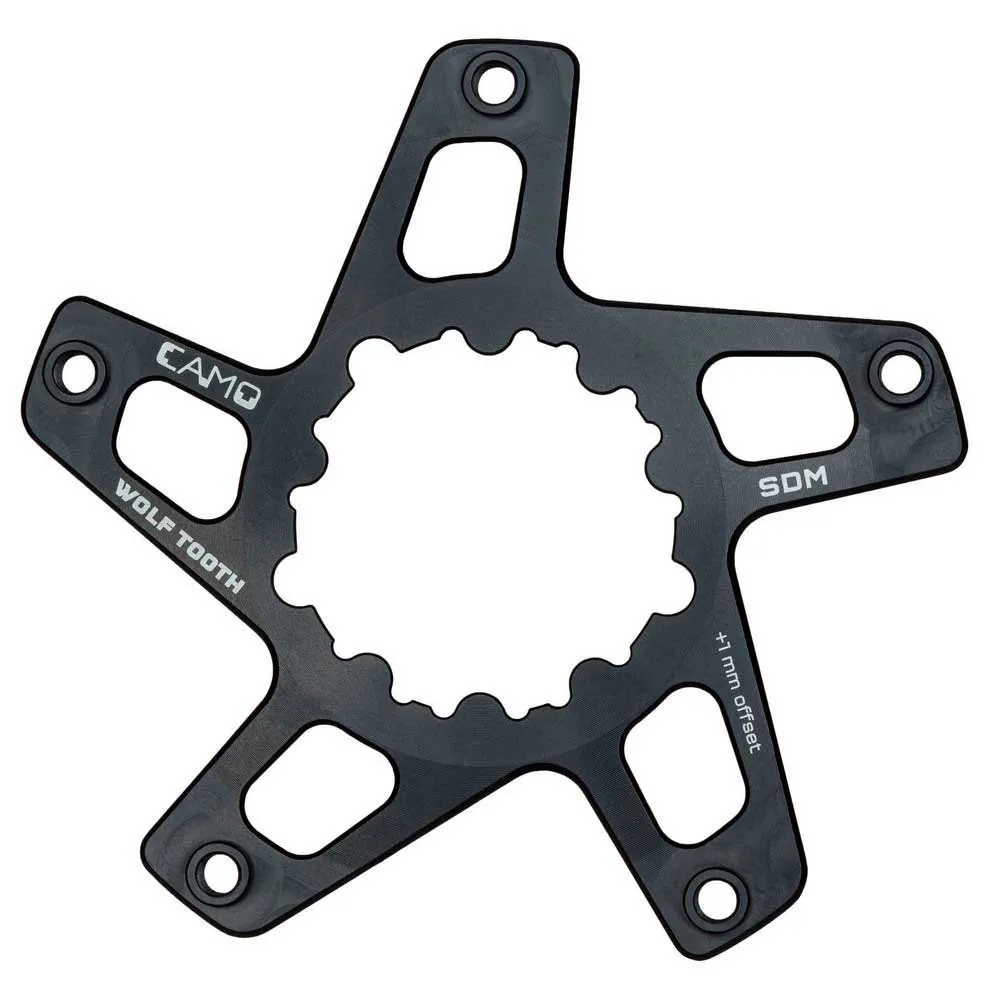

Wolf-tooth Camo Sram M2 Fat Bikes Spider

This is a spider for use with the SRAM cranksets that have a removable spider
The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:

– Perfect chainline for wear and shifting precision
– Optimal material usage for weight, stiffness, and wear
– Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
– Swapping chainrings is very fast with only five small bolts and no nuts
– Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
– Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

M2 (0mm offset):
– Is for a 49mm chainline on a BB30 short spindle crankset.
– Praxis Works mountain bike cranks use this offset for DM-B chainrings.
– See the image below for how to measure your spindle length if you have BB30.

Installation notes:
– You will be able to access all bolts without removing the spider
– Line up the little dot on the ring with the dot on the spider. Don´t worry, you cannot install the ring in the wrong rotational orientation.
– Be sure the bosses on the spider ´´plug in´´ to the chainring.
– Torque bolts only to 4-5 Nm and use blue Loctite threadlocker

Specifications:

– Weight: M2 – 28g
– Material: 7075-T6 aluminum
– Included: ED coated steel bolts included
