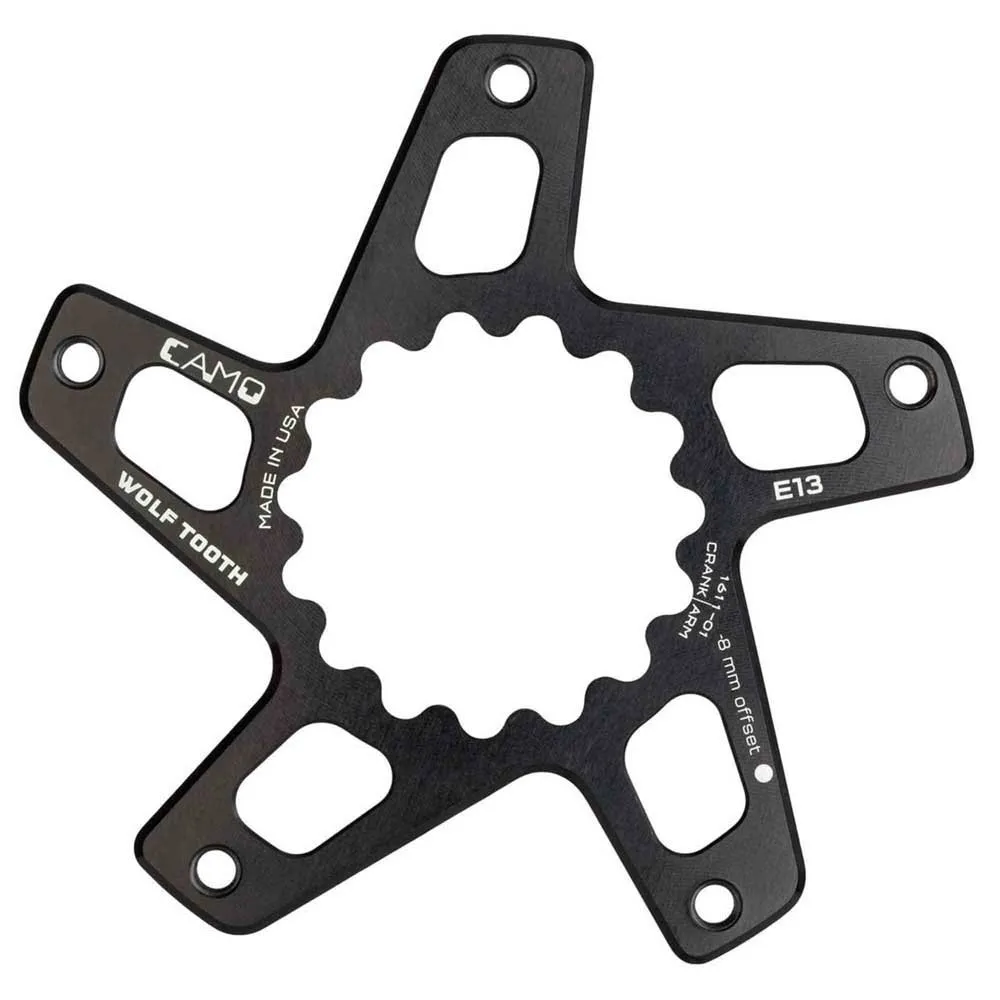

Wolf-tooth Camo Sram M8 GXP 6 Mm Offset Spider

This is a spider for use with the SRAM cranksets that have a removable spider
The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:

– Perfect chainline for wear and shifting precision
– Optimal material usage for weight, stiffness, and wear
– Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
– Swapping chainrings is very fast with only five small bolts and no nuts
– Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
– Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

M8 (6mm offset – dished towards the frame):
– For use with GXP cranks and BB30 Long Spindle standard 49mm chainline.
– Praxis Works Road/CX cranks use this offset.
– See the image below for how to measure your spindle length if you have BB30.
– This is for use on bikes with 135mm QR, 142mm thru axle, and some 148mm bikes. Details here on the 148mm Boost spacing.

Specifications:

– Weight: M8 – 32g
– Material: 7075-T6 aluminum
– Included: ED coated steel bolts included
