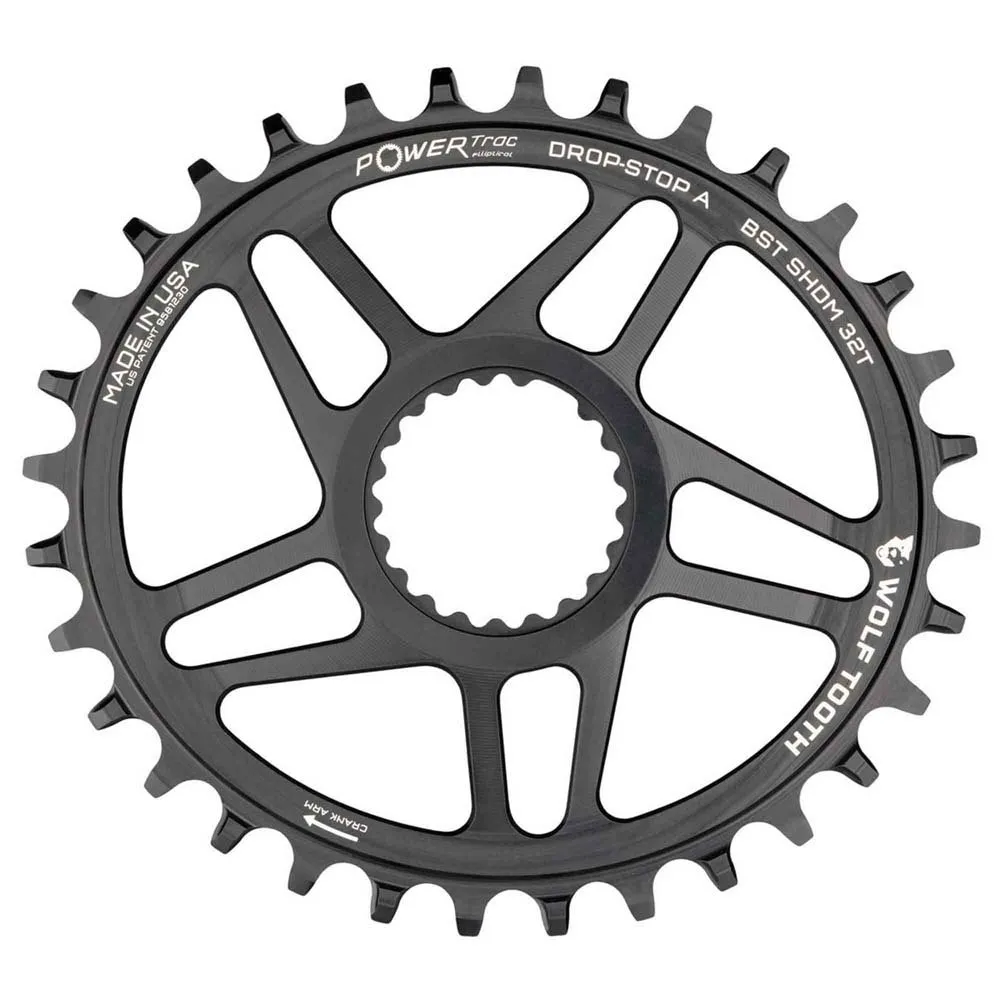

Wolf-tooth Shimano 12s Boost Direct Mount Oval Chainring

These chainrings are for Shimano direct mount cranks. The Wolf Tooth chainrings feature our patented Drop-Stop® design for the best wear life, chain retention and mud clearance.

If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.

Specifications:

– Weight: 32t – 66g
– Material: 7075-T6 aluminum

Compatibility:
– Shimano XTR M9100, XT M8100, SLX M7100, and Deore M6100 series 12 speed cranksets.
– Super boost cranksets -models M8120, M8130, M7120 and M7130 – use the Boost chainring. These Super Boost cranksets have a longer spindle and do not use the Super Boost chainring. These cranks and ring should ONLY be used on bikes with Super Boost rear hub spacing (157mm)
– Boost cranksets – models M9100, M8100, M7100, MT610 – will use a Boost ring with Boost rear hub spacing (148mm) and a Super Boost ring with Super Boost rear hub spacing (157mm).
– Available in two different tooth profiles for optimal performance based on your chain type. Use Drop-Stop ST for use with Shimano 12-speed Hyperglide+ chains. Use Drop-Stop A for all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
